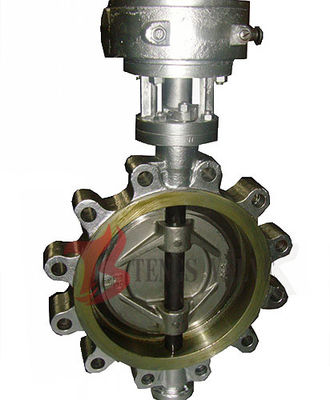

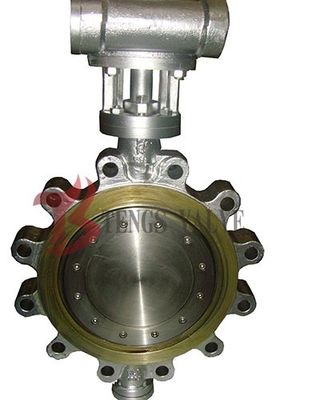

Hard Seal Metal Seated Butterfly Valve Gear Type For Metallurgy / Light Industry

China Hard Seal Metal Seated Butterfly Valve Gear Type For Metallurgy / Light Industry supplier
Hard Seal Metal Seated Butterfly Valve Gear Type For Metallurgy / Light Industry supplier Hard Seal Metal Seated Butterfly Valve Gear Type For Metallurgy / Light Industry supplier

Large Image :  Hard Seal Metal Seated Butterfly Valve Gear Type For Metallurgy / Light Industry

Product Details:

Place of Origin: China
Brand Name: Tengs Valve
Certification: ISO, CE
Model Number: LTD73H

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Seaworthy Plywoods
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 300 Pcs
Contact Now
Detailed Product Description
Body Material: Cast Steel WCB Trim: 13Cr, SS304, SS316
Size: 2in - 60in Pressure Rating: Class 150LB - 300LB - 600LB
Actuator: Manual, Gear Operated Connection Ends: Lug Type
Seat: Metal Seated, Hard Seal Other: OEM Available

Cast Steel WCB Lug Type Hard Seal Butterfly Valves Metallic Seat Gear Operated BFV



Quick Details

1. Valve Type: Cast Steel Lug Type Hard Seal Butterfly Valve

2. Standard: API609

3. Pressure rating: Class 150LB -300LB - 600LB

4. Size: 2” - 60"

5. Body materials: Carbon steel WCB

6. Disc: Carbon Steel (WCB), Stainless Steel (CF8 / CF8M)

7. Stem material: Stainless Steel 13Cr, F304 / F316, 17 -4PH

8. Actuator: Manual, Worm gear

9. Body Design: High Performance, Triple Offset, Three- Eccentric



Features

1. The Seal Principle of Metal Seated Butterfly Valve Triple Offset

The Triple Offset Butterfly Valve provides a bi-directional bubble tight shut-off.This geometry ensures that the disc seal contacts the body seat only at the final shut-off position without rubbing or galling, providing a torque generated resilient seal with sufficient “wedging” to ensure auniform seal contact.



Triple Offset Butterfly Valve Geometry

2. The Triple Offset Geometry
OFFSET 1 The shaft is offset behind the seat axis to allow complete sealing contact around the entire seat

OFFSET2 The shaft centerline is offset from the pipe and valve which provides interference free opening and closing of the valve

0FFSET3 The seat cone axis is offset from the shaft centerline to eliminate friction during closing and opening and to achieve uniform compressive sealing around the entire seat.



3. Friction Free Sealing for Long Cycle Life
(1) Seat is Cr13 Metal alloy or hardfaced with Stellite as standard.

(2) The gasket is spiral wound SS/Graphite for zero leakage.

(3) Seat ring forces are generated by the torque during closing uniformly around the entire circumference. The resilient seal fleses and energizes, assuming the shape of the seat. The compression forces equally distributed around the perimeter provide a tight bi-directional shut off.
The resiliency of the seal allows the valve body and disc to contract or expand, without the risk of jamming due to temperature fluctuations. It is self-adjusting.



Standards

Design and Manufacture; API 609. MSS SP-67, MSS SP-68
Inspection and Test: API S98

End flange dimension: ASME B16 5 (NPS≤24). ASME B16 47 B series
BW end dimension: ASME B16.25

Face to face and end to end; API 609

Pressure-temperature ratings: ASMF B16.34



Application

Metal Seated (Hard Seal) Butterfly Valve triple offset series are used in such fields as metallurgy, light industry, electric power, petrochemistry, coal gas channel etc.



Description



Triple Offset Butterfly Valve Drawing



1. Materials List (Lug Type Triple Offset Butterfly Valve)



No. Part Name Materials
1 Body ASTM A216 WCB ASTM A216 WCB ASTM A216 WCB
2 Pin ASTM A29 1035 / A276 304 ASTM A29 1035 / A276 304 ASTM A29 1035 / A276 304
3 Stem 420 304 316
4 Disc WCB CF8 CF8M
5 Seal Ring 304/316+Graphife / PTFE 304/316+Graphife / PTFE 304/316+Graphife / PTFE
6 Retainer Flange A105 A182 F304 A182 F316
7 Bolt B7 B8 B8M
8 Bolt B7 B7 B7
9 Cover A105 A105 A105
10 Gasket Graphite Graphite Graphite
11 Bushing Luberized bronze Luberized bronze Luberized bronze
12 Bushing 304 Nitriding 304 Nitriding 304 Nitriding
13 Packing Seat A105/304 A105/304 A105/304
14 Packing Graphite Graphite Graphite
16 Packing Cover WCB WCB WCB
17 Nut A194 2H A194 2H A194 2H
18 Bolt A193 B7 A193 B7 A193 B7
19 Yoke WCB WCB WCB
Drive Actuator Manual, Worm gear



2. Main Connection Dimensions or Lug Butterfly Valve

Hard Seal Metal Seated Butterfly Valve Gear Type For Metallurgy / Light Industry

Class Size   Class Size
NPS DN L NPS DN L
150Lb 2 50 43 300Lb 2 50 43
21/2 65 46 21/2 65 46
3 80 48 3 80 48
4 100 54 4 100 54
5 125 56 6 150 59
6 150 57 8 200 73
8 200 64 10 250 83
10 250 71 12 300 92
12 300 81 14 350 117
14 350 92 16 400 133
16 400 102 18 450 149
18 450 114 20 500 159
20 500 127 24 600 181
24 600 154 600Lb 2 50 43
26 650 154 21/2 65 46
28 700 165 3 80 54
30 750 165 4 100 64
32 800 190 6 150 78
36 900 200/203 8 200 102
38 950 200/203 10 250 117
40 1000 216 12 300 140
42 1050 216/251 14 350 155
44 1100 216/251 16 400 178
48 1200 254/276 18 450 200
52 1300 254 20 500 216
56 1400 279 24 600 232
60 1500 279
