1" - 24" Simplex Basket Strainer Low Temperature Carbon Steel A352 LCB Flanged To ANSI

I'm Online Chat Now
Buy Lots of Industrial Valves Since 2008, Good Quality, Good Supplier!

—— Mr. Lobo

Trustworthy! We Offen Purchase Gate Valves, Globe Valves, Ball Valves, and Some Strainers from this Company, Good Service, Fast Delivery.

—— Mr.Kim

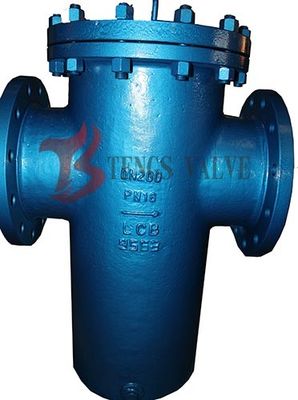

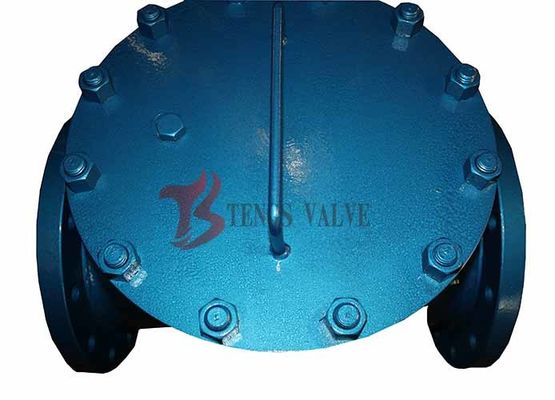

1" - 24" Simplex Basket Strainer Low Temperature Carbon Steel A352 LCB Flanged To ANSI

1" - 24" Simplex Basket Strainer Low Temperature Carbon Steel A352 LCB Flanged To ANSI
1" - 24" Simplex Basket Strainer Low Temperature Carbon Steel A352 LCB Flanged To ANSI 1" - 24" Simplex Basket Strainer Low Temperature Carbon Steel A352 LCB Flanged To ANSI

Large Image :  1" - 24" Simplex Basket Strainer Low Temperature Carbon Steel A352 LCB Flanged To ANSI Get Best Price

Product Details:

Place of Origin: China
Brand Name: Tengs Valve
Certification: ISO, CE
Model Number: Basket Type

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Seaworthy Plywoods
Delivery Time: 30 Days
Supply Ability: 500 Pcs
Detailed Product Description
Body Material: Cast Low Temperature Steel: A352 LCB Basket: SS304, SS316
Size: 1in - 24in Pressure Rating: Class 150LB / 300LB
Connection Ends: RF, FF Other: OEM Available
High Light:

basket filter strainer

,

simplex basket filter

Cast Simplex Basket Strainer Low Temperature Carbon Steel A352 LCB Flanged to ANSI



Quick Detail

1. Product: Low Temperature Steel Simplex Basket Strainer

2. Sizes: 1" - 24"

3. Pressure rating: ANSI 150LB / 150#, 300LB / 300#

4. Suitable medium: Water, gas, oil, steam etc.

5. Body material: A352 LCB

6. Screen: Stainless steel (304SS, 316SS)

7. Mesh size: 20mesh, 40mesh, 60mesh, 80mesh, 100mesh, 200mesh, 400mesh etc

8. End connection: BW, RF, FF

9. Bonnet / Cover Type: Bolted Cover



Basket Strainer Features

Simplex basket strainer is suitable for liquid, hold substantially more material than Y strainers and offer a lower pressure drop, use this simplex basket strainer for such applications: industrial water, and oil systems for a factory or plant.

Installed upright, in a horizontal line, the basket strainer lifts out from the top.



Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as water, ammonia, oil and hydrocarbon products etc.

B) Corrosive medium for chemical products such as sodium hydrate, caustic soda, metric acid, acetic acid etc.

C) Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen etc.

D) Industry hygiene medium in light industry, foodstuff and pharmacy such as beer, drink, beverage, dairy products etc.



Strainer Main Technical Paremeters
A) Operating Temperature(oC): Low Temperature:-46~343oC

B) Operating Pressure(Mpa): 0.6 ~ 11.0 Mpa

C) Body Material: Low Temperature Steel A352-LCB

D) Seal Material : Asbestos, NBR, PTFE, Graphite+SS.

E) Strainer Element Material: Stainless steel, Duplex Stainless Steel

F) Screen mesh from 10 mesh to 400 mesh,also we can produce according to customer's repuinement.
G) Shell inspection And Test: API598 / ISO5208



Basket Strainer Standards

Design and Manufacture: ASME B16.34
Inspection and Test: API 598
End flange dimension: ASME B16.5,ASME B16.47 A
BW end dimension: ASME B16.25
Face to face and end to end: ASME B16.10
(Check valve/Globe valve)
Pressure-temperature ratings: ASME B16.34



Descriptions

1. Main Parts and Material List For Simplex Basket Strainer

1" - 24" Simplex Basket Strainer Low Temperature Carbon Steel A352 LCB Flanged To ANSI 0



NO Parts name Material
1 Body ASTM A352 LCB ASTM A352 LCB
2 Screen SS304 SS316
3 Gasket Graphite Or Graphite+Stainless Steel(304, 304L, 316,316L)
4 Cover LF2 LF2
5 Cover Bolt A320 L7 A320 L7
6 Cover Nut A194 4 A194 4
7 Drain plug LF2 LF2



2. Main Connection Dimensions

1" - 24" Simplex Basket Strainer Low Temperature Carbon Steel A352 LCB Flanged To ANSI 1

Class 150LB

NPS

In

DN

mm

L B D G f K Z-Ød C H
1/2 15 203 13 89 35.1 1.6 60.3 4-15.9 9.7 120
3/4 20 203 19 99 42.9 1.6 69.9 4-15.9 10.4 120
1 25 203 25 108 50.8 1.6 79.3 4-15.9 11.2 120
1-1/4 32 203 32 117 63.5 1.6 88.9 4-15.9 12.7 130
1-1/2 40 203 38 127 73.2 1.6 98.6 4-15.9 14.2 130
2 50 203 49 152 91.9 1.6 120.7 4-19.1 15.8 150
2 1/2 65 216 62 178 104.6 1.6 139.7 4-19.1 17.5 180
3 80 241 74 191 127 1.6 152.4 4-19.1 19.1 200
4 100 292 100 229 157.2 1.6 190.5 8-19.1 23.9 240
6 150 406 150 279 215.9 1.6 241.3 8-22.2 25.4 370
8 200 495 201 343 269.7 1.6 298.5 8-22.2 28.4 480
10 250 622 252 406 323.9 1.6 362 12-25.4 30.2 520
12 300 699 303 483 381 1.6 431.8 12-25.4 31.8 580
14 350 787 334 533 412.8 1.6 476.2 12-28.6 35.1 620
16 400 864 385 597 469.9 1.6 539.8 16-28.6 36.6 750
18 450 978 436 635 533.4 1.6 577.9 16-31.8 39.6 780
20 500 978 487 699 584.2 1.6 635 20-31.8 42.9 -
24 600 1295 589 813 692.2 1.6 749.3 20-34.9 47.8 -

















































Class 300LB

NPS

In

DN

mm

L B D G f K Z-Ød C H
1 25 203 25 124 50.8 1.6 88.9 4-19.1 17.5 120
1-1/4 32 216 32 133 63.5 1.6 98.6 4-19.1 19.1 130
1-1/2 40 229 38 155 73.2 1.6 114.3 4-22.2 20.6 130
2 50 267 49 165 91.9 1.6 127 8-19.1 22.4 150
2 1/2 65 292 62 191 104.6 1.6 149.2 8-22.2 25.4 180
3 80 318 74 210 127 1.6 168.3 8-22.2 28.4 200
4 100 356 100 254 157.2 1.6 200.2 8-22.2 31.8 240
6 150 445 150 318 215.9 1.6 269.8 12-22.2 36.6 370
8 200 533 201 381 269.7 1.6 330.2 12-25.4 41.1 480
10 250 622 252 445 323.9 1.6 387.4 16-28.6 47.8 520
12 300 711 303 521 381 1.6 450.9 16-31.8 50.8 580
14 350 838 334 584 412.8 1.6 514.4 20-31.8 53.8 620
16 400 864 385 648 469.9 1.6 571.5 20-34.9 57.2 750
18 450 978 436 711 533.4 1.6 628.7 24-34.9 60.5 780
20 500 1016 487 775 584.2 1.6 685.8 24-34.9 63.5 -
24 600 1346 589 914 692.2 1.6 812.8 24-41.3 69.9 -
