|Body Material:||Carbon Steel, Alloy Steel, Stainless Steel, DSS||Trim:||Trim 5#, Full Stellite|
|Size:||2in To12in||Pressure Rating:||Class 900LB / 900#|
|Actuator:||Manual: Gear Operated||Connection Ends:||RF, RTJ, BW|
|Body Type:||Straight||Other:||OEM Available|
carbon steel globe valve,
manual globe valve

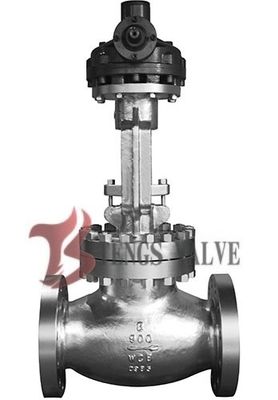

Api Cast Steel Flanged Globe Valve Hardfaced HF Bolted Bonnet Bevel Gear Operated 900LB
1. Type: Industrial Globe Valves
2. OS&Y Construction, Bolted Bonnet
3. Size Range of Globe Valve: 2" to 12"
4. Pressure Ratings: ANSI 900LB / 900#
5. End Connections: Flanged (RF, RTJ), Butt welding (BW)
6. Materials Available in: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, 4A, 5A or Equivalent;
7. Various trim materials are available to suit service conditions
8. Actuator: Manual, Bevel Gear
9. NACE MR 0175
Design and Manufacture: Cast steel globe valve to BS 1873 and ASME B16.34
Inspection and Test: API 598.
End flange dimension: ASME B16.5.
BW end dimension: ASME B16.25.
Face to face and end to end: ASME B16.10.
Pressure-temperature ratings: ASME B16.34.
Bolted Bonnet: Outside Screw and Yoke
Metallic seating surfaces
2. Body and Bonnet Connection
Bolted Bonnet (B.B)
3. Bonnet Gasket Style
The metail ring gasket is used for Class900 globe valve
4. Packing Seal
As usual, flexible graphite is used for packing material. PTFE or combined packing material can be also used if being requested by the customer.
5. Stem Design
The stem is of integral forged design. The minimum diameter of the stem shall per the standard requirement.
6. Backseat Design
All our globe valves have the backseat design. In most cases, the carbon steel globe valve is fitted with a renewable backseat. For stainless steel globe valve, the backseat is machined directly in the bonnet or is machined after welding. When the globe valve is at fully open position, the sealing of the backseat can be very reliable.
For carbon steel globe valve, the seat is usually forged steel. The sealing surface of the seat is spray welded with hard alloy specified by the customer. For Stainless steel globe valve, integral seat is usually adopted, or to weld hard alloy directly integrally.
8. Stem Nut
Usually, the stem nut is made of ASTM A439 D2. it is also can be made of copper ally if being requested by the customer. For large sized globe valve, if the rolling bearing is fitted,it is effective to reduce the torque of globe valve for easy operation.
In most of cases, handwheel & gearbox is usually used for globe valve operatrion.
10. Other Globe Valves
Besides the common globe valves, we also makes cryogenic globe valve, Bellow sealed globe valve, Jacketed globe valve, etc.
1. Industrial Globe Valve Parts and Material List:
|WCB/Trim 1||WCB/Trim 5||WCB/Trim 8||CF8/304||CF8M/316|
|1||Body||ASTM A216 WCB||ASTM A216 WCB||ASTM A216 WCB||ASTM A351 CF8||ASTM A351 CF8M|
|2||Seat ring||A105+13Cr||A105 + STL||A105+STL||ASTM A351 CF8||ASTM A351 CF8M|
|3||Disc||ASTM A216 WCB+13Cf||ASTM A216 WCB + STL.||ASTM A216 WCB + 13CR||ASTM A351 CF8||ASTM A351 CF8M|
|A||Stem||ASTM A182 F6a||ASTM A182 F6a||ASTM A182 F6a||ASTM A182 F304||ASTM A182 F316|
|5||Disc nut||AS1M A216 WCB||ASTM A216 WCB||ASTM A216 WCB||ASTM A351 CF8||ASTM A351 CF8M|
|6||Bonnet nut||ASTM A194 2H||ASTM A194 2H||ASTM A194 2H||ASTMA194 8||ASTM A194 8M|
|7||Bonnet bolt||ASTM A193 B7||ASTM A193 B7||ASTMA193 B7||ASTMA193 B8||ASTM A193 B8M|
|8||Gasket||304SS + Graphite||304SS + Graphite||304SS +Graphite||304SS + Graphite||316SS + Graphite|
|9||Backseat bushing||ASTM A182 F6a||ASTM A182 F6a||ASTM A182 F6a||ASTM A351 CF8||ASTM A351 CF8M|
|10||Bonnet||ASTM A216 WCB||ASTM A216 WCB||ASTM A216 WCB||ASTM A351 CF8||ASTMA351 CF8M|
|12||Eyebolt pin||ASTM A36||ASTM A36||ASTM A36||304SS||316SS|
|13||Gland eyebolt||ASTM A193 B7||ASrM A193 B7||ASTM A193 B7||ASTMA193 B8||ASTM A193 B8M|
|14||Gland||ASTMA182 F6a||ASTM A182 F6a||ASTM A182 F6a||ASTM A182 F304||ASTM A182 F316|
|15||Gland flange||ASTM A216 WCB||ASTM A216 WCB||ASTM A216WCB||ASTM A351 CF8||ASTMA351 CF8M|
|16||Eyebolt nut||ASTMA194 2h||ASTMA194 2H||ASTM A194 2H||ASTM A194 8||ASTM A194 8M|
|17||Slem nut||ASTM A439 D2.||ASTM A439 D2||ASTM A439 D2||ASTM A439 D2||ASTM A439 D2|
|18||Handwheel||Ductile Iron||Ductile Iron||Ductile Iron||Ductile Iron||Ductile Iron|
|19||Handwheel nut||Carbon steel||Carbon steel||Carbon steel||Carbon steel||Carbon steel|
2. Main Connection Dimensions for Class 900LB:
