2" - 48" Angle Type Strainers Low Temperature A420 WPL6 Weld End With Perforated Basket

I'm Online Chat Now
Buy Lots of Industrial Valves Since 2008, Good Quality, Good Supplier!

—— Mr. Lobo

Trustworthy! We Offen Purchase Gate Valves, Globe Valves, Ball Valves, and Some Strainers from this Company, Good Service, Fast Delivery.

—— Mr.Kim

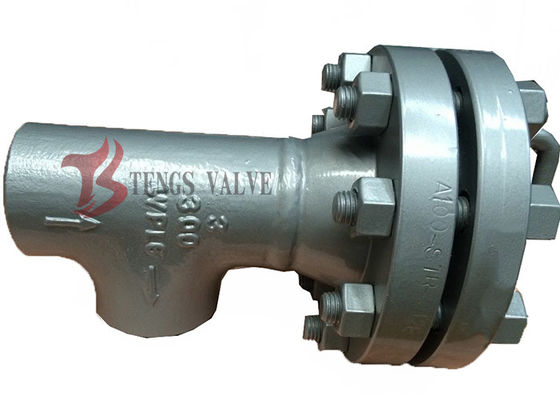

2" - 48" Angle Type Strainers Low Temperature A420 WPL6 Weld End With Perforated Basket

2" - 48" Angle Type Strainers Low Temperature A420 WPL6 Weld End With Perforated Basket
2" - 48" Angle Type Strainers Low Temperature A420 WPL6 Weld End With Perforated Basket

Large Image :  2" - 48" Angle Type Strainers Low Temperature A420 WPL6 Weld End With Perforated Basket Get Best Price

Product Details:

Place of Origin: China
Brand Name: Tengs Valve
Certification: ISO, CE
Model Number: Angle Tee Type

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Seaworthy Plywoods
Delivery Time: 30 Days
Supply Ability: 500 Pcs
Detailed Product Description
Body Material: Carbon Steel, Low Temperature Steel Screen/ Basket: SS304, SS316 (L)
Size: 2in - 48in Pressure Rating: Class 150LB / 300LB / 600LB
Connection Ends: BW Body Design: Angle Type
Cover: WN Fange + Blind Flange OEM Service: YES
High Light:

tee type strainer

,

inline t strainer

Angle Type Tee Strainer Low Temperature A420 WPL6 Weld End with Perforated Basket



Quick Details

1. Product: Angle Tee Type Strainer

2. Sizes: 2" - 48"

3. Pressure rating: ANSI 150LB / 300LB / 600LB

4. Suitable medium: Water, gas, oil, steam etc.

5. Body material: A234 WPB, A420 WPL6

6. Screen: Stainless steel (304SS, 316SS)

7. Mesh size: 20mesh, 40mesh, 60mesh, 80mesh, 100mesh, 200mesh, 400mesh etc

8. End connection: BW (Butt Weld)

9. Cover Type: Bolted Cover

10. Flow Direction: Angle Type



Features

1. Strainer is a kind of equipment that eliminates a small amount of impurities from liquid and gases. It can protect normal operation to compressor, pump and other equipment as well as instruments, also it can upgrade liquid and gases quality. So it can be widely used in petroleum, chemical industry, chemical fibre, pharmaceutical and food industry etc.

2. Tee Type Strainer Features

Tee Type strainer is used to filter, purify and remove the particles from the pipelines, to protect the pump, valve, boiler and other device.

A) Both vertical and horizontal installation.

B) Tee strainer style:

Inline straight throug flow Tee Type strainer,

Angle flow top to side Tee Type strainer,

Angle flow side to side Tee Type strainer.



Tee Type Strainer Standards

Design and Manufacture: ASME B16.34
Inspection and Test: API 598
End flange dimension: ASME B16.5,ASME B16.47 A / B
BW end dimension: ASME B16.25
Face to face and end to end: ASME B16.10
(Check valve/Globe valve)
Pressure-temperature ratings: ASME B16.34



Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as water, ammonia, oil and hydrocarbon products etc.

B) Corrosive medium for chemical products such as sodium hydrate, caustic soda, metric acid, acetic acid etc.

C) Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen etc.

D) Industry hygiene medium in light industry, foodstuff and pharmacy such as beer, drink, beverage, dairy products etc.



Strainer Main Technical Paremeters
A) Operating Temperature(oC):CS:-30~380oC, SS: -80~450oC;

B) Operating Pressure(Mpa): 0.6 ~ 11.0 Mpa

C) Body Material: WPB, WPL6, A106, SS304, SS304L, SS316, SS316L etc.

D) Seal Material : Asbestos, NBR, PTFE, Graphite+SS.

E) Strainer Element Material: Stainless steel, Duplex Stainless Steel

F) Screen mesh from 10 mesh to 400 mesh,also we can produce according to customer's repuinement.
G) Shell inspection And Test: API598 / ISO5208



Descriptions



1. Main Part and Material List:

2" - 48" Angle Type Strainers Low Temperature A420 WPL6 Weld End With Perforated Basket 0

No. Parts Name Material
1 Screen SS304
2 Drain Plug ASTM A182 LF2
3 Gasket Graphite+SS304
4 Cover Bolt ASTM A320 L7
5 Cover Nut ASTM A194 4
6 Cover ASTM A182 LF2
7 WN Flange ASTM A182 LF2
8 Tee ASTM A420 WPL6



2. Main Connection Dimensions

2" - 48" Angle Type Strainers Low Temperature A420 WPL6 Weld End With Perforated Basket 1

NPS DN

L (150LB - 300LB - 600LB)

BW

In mm
2 50 57
2 1/2 65 75
3 80 85
4 100 103
6 150 141
8 200 176
10 250 215
12 300 253
14 350 278
16 400 303
18 450 342
20 500 380
22 550 418
24 600 429
26 650 484
28 700 519
30 750 557
32 800 596
34 850 634
36 900 672
38 950 710
40 1000 748
42 1020 761
44 1100 811
46 1150 849
48 1200 888
