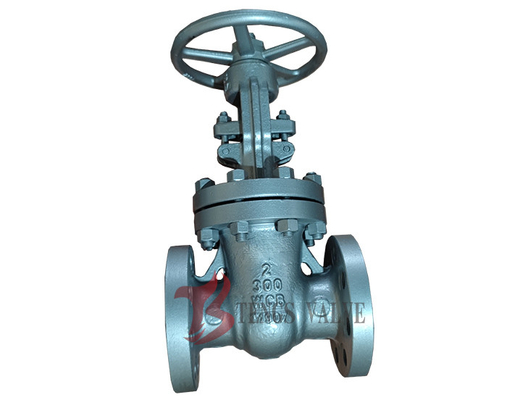

DN50 CL300 Flanged Gate Valve Carbon Steel A216 WCB Stainless Steel Trim Pn50 Manual Valves

DN50 CL300 Flanged Gate Valve Carbon Steel A216 WCB Stainless Steel Trim Pn50 Manual Valves
DN50 CL300 Flanged Gate Valve Carbon Steel A216 WCB Stainless Steel Trim Pn50 Manual Valves

Large Image :  DN50 CL300 Flanged Gate Valve Carbon Steel A216 WCB Stainless Steel Trim Pn50 Manual Valves Get Best Price

Product Details:

Place of Origin: China
Brand Name: Tengs Valve
Certification: ISO, CE, API
Model Number: Z40H

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Sea Worthy Plywoods, Air Worthy Plywoods
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 200 Pcs Per Month
Detailed Product Description
Body Material: Carbon Steel A216 WCB Trim: Stainless Steel
Size: 2inch, Dn50 Pressure Rating: Class 300LB / Ansi CL300
Actuator: Manual: Handwheel Or Bare Stem Connection Ends: RF, Flanged
Painting: As Per Staindards Other: OEM Available

DN50 (2") Class 300 Cast Steel Gate Valve — A216 WCB with Stainless Steel Trim, API 600

Model Z40H (rising stem, flange connection, hard-faced seal)
Size DN50 / 2 inch
Pressure class ASME Class 300 / 300LB / CL300
Design standard API 600 / API 6D
Body material ASTM A216 WCB (cast carbon steel)
Trim Stainless steel trim — Trim 1 (13Cr) · Trim 5 (STL) · Trim 8 (13Cr + STL)
End connection Flanged — RF or RTJ (ASME B16.5)
Structure OS&Y rising stem · bolted bonnet · flexible wedge · backseat
Operation Handwheel, bare stem, or gear operator
Inspection & test API 598
Special options NACE MR0175 on request

This DN50 (2 inch) Class 300LB cast steel gate valve is the API 600 rising stem (OS&Y) bolted bonnet design with a flexible wedge and backseat. The body is ASTM A216 WCB cast carbon steel, with the seat and wedge sealing surfaces hardfaced with a stainless or hard alloy — the standard Trim 1 (13Cr), Trim 5 (STL) or Trim 8 (13Cr + STL) options. Flanged ends are to ASME B16.5 with either raised face (RF) or ring type joint (RTJ) facing; face-to-face dimensions are per ASME B16.10, pressure-temperature ratings per ASME B16.34. The valve is supplied with a handwheel as standard; bare stem or bevel gear operator is available on request. DN50 / 2 inch is the smallest standard size in the Class 300 gate valve range and is widely used on small-bore isolation duty in water treatment, oil and gas and petrochemical service.

Application

This DN50 / 2 inch Class 300 gate valve is specified in water treatment, oil and gas, petrochemical and general utility service for on/off isolation duty. The stainless steel trim provides erosion and wear resistance in steam, high-temperature water and mildly corrosive process media. For sour service the valve can be supplied to NACE MR0175 / ISO 15156 on request; RTJ ends are frequently specified together with NACE compliance at Class 300.

Standards

Design and Manufacture: Cast steel gate valve to API 600 or API 6D.
Inspection and Test: API 598, API 600 or API 6D.
End flange dimension: ASME B16.5 (for NPS ≤ 24); API 605 or ASME B16.47 series A / MSS SP-44 (for NPS > 24).
BW end dimension: ASME B16.25.
Socket-weld dimension: ASME B16.11.
Face to face and end to end: ASME B16.10.
Pressure-temperature ratings: ASME B16.34.

Quick Details

1. Type: API 600 gate valves, model Z40H
2. Design: OS&Y, bolted bonnet, flexible wedge design
3. Size: DN50 / 2 inch
4. Pressure Rating: ASME Class 300 / 300LB / CL300
5. Body Material: ASTM A216 WCB
6. Various trim materials are available to suit different service conditions
7. Actuator: Manual, handwheel (bare stem or gear operated available on request)
8. Special Requirement: NACE MR0175 on request

Selection Notes: Stainless Steel Trim, DN50 vs 2" and PN50 vs Class 300

What stainless steel trim means: on a WCB (carbon steel) gate valve, the body, bonnet and wedge are cast carbon steel, but the sealing surfaces — the seat ring and the wedge sealing face — are hardfaced with a stainless or hard alloy to resist erosion and wear. This is what the term "stainless steel trim" refers to. In the API 600 / API 6D trim numbering system, the common options are Trim 1 (13Cr seat and 13Cr wedge), Trim 5 (Stellite on both seat and wedge), and Trim 8 (13Cr wedge with Stellite seat). This valve is supplied with a stainless steel trim as standard, and the specific trim is confirmed at the time of order.

DN50 vs 2 inch: DN50 and 2 inch refer to the same nominal valve size. DN50 is the metric DN (Diamètre Nominal) designation in the DIN / ISO system, and 2 inch is the ASME NPS (Nominal Pipe Size) designation. For a 2 inch valve, the two are equivalent: NPS 2 = DN50, with an outside diameter of the connected pipe of approximately 60.3 mm. Both designations are used interchangeably in the valve industry, and this page uses both so that the same product can be found under either search term.

PN50 vs Class 300: PN50 and Class 300 are two different pressure rating systems and are not the same. PN50 is a nominal pressure of 50 bar in the DIN / EN system, while Class 300 is a class number that references the pressure-temperature curve in ASME B16.34. At ambient temperature, Class 300 corresponds to a pressure in the range of 50 bar for carbon steel, which is close to PN50, but the two are not identical and the pressure-temperature curves differ. For a valve that will be installed on a line that references one system, the valve should be specified in that same system — do not assume that a PN50 valve is interchangeable with a Class 300 valve without checking the pressure-temperature rating at the operating temperature.

Features

1. Bonnet Gasket Style
Stainless steel + flexible graphite wound gasket is used for Class 300 gate valve.

2. Packing Seal
As usual, flexible graphite is used for packing material. PTFE or combined packing material can also be used if requested by the customer.

3. Body and Bonnet Connection
Class 300LB gate valves are usually connected with bolted bonnet design.

4. Operation
Hand wheel or bevel gear box is usually used for gate valve operation. Bare stem configuration is also available if the customer provides the actuator.

5. Disc Design
NPS ≥ 2 gate valves are flexible wedge gate.

6. Backseat Design
All gate valves have backseat design. In most cases, the carbon steel gate valve is fitted with a renewable back seat. For stainless steel gate valve, the back seat is machined directly in the bonnet or machined after welding.

7. Stem Design
The stem is integral forged design. The minimum diameter of the stem shall be as per the standard requirement.

8. Stem Nut
Usually, the stem nut is made of ASTM A439 D2. It can also be made of copper alloy or other materials if requested by the customer.

9. Seat
For carbon steel gate valve, the seat is usually forged steel. The seat sealing surface is overlay welded with hard alloy specified by the customer. For stainless steel gate valve, the seat is integral with body, or it can be machined directly after hard alloy welding.

Cast Steel Gate Valve Parts and Material List (Class 300LB)

DN50 2 inch Class 300 cast steel gate valve Z40H parts and material diagram

Swipe horizontally to see all materials

Parts No. Parts Name WCB / Trim 1 WCB / Trim 5 WCB / Trim 8 CF8 / 304 CF8M / 316
1 Body ASTM A216 WCB ASTM A216 WCB ASTM A216 WCB ASTM A351 CF8 ASTM A351 CF8M
2 Gasket Soft Iron + Graphite or 304 + Graphite 304 + Graphite 316 + Graphite
3 Seat Ring A105 + 13Cr A105 + STL A105 + STL ASTM A351 CF8 ASTM A351 CF8M
4 Gate ASTM A216 WCB + 13Cr ASTM A216 WCB + STL ASTM A216 WCB + 13Cr ASTM A351 CF8 ASTM A351 CF8M
5 Stem ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F304 ASTM A182 F316
6 Backseat Bushing ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A351 CF8 ASTM A351 CF8M
7 Packing Graphite Graphite Graphite Graphite Graphite
8 Gland ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F304 ASTM A182 F316
9 Gland Eyebolt ASTM A193 B7 ASTM A193 B7 ASTM A193 B7 ASTM A193 B8 ASTM A193 B8M
10 Eyebolt Nut ASTM A194 2H ASTM A194 2H ASTM A194 2H ASTM A194 8 ASTM A194 8M
11 Eyebolt Pin ASTM A36 ASTM A36 ASTM A36 304SS 316SS
12 Gland Flange ASTM A216 WCB ASTM A216 WCB ASTM A216 WCB ASTM A351 CF8 ASTM A351 CF8M
13 Bonnet Bolt ASTM A193 B7 ASTM A193 B7 ASTM A193 B7 ASTM A193 B8 ASTM A193 B8M
14 Bonnet Nut ASTM A194 2H ASTM A194 2H ASTM A194 2H ASTM A194 8 ASTM A194 8M
15 Bonnet ASTM A216 WCB ASTM A216 WCB ASTM A216 WCB ASTM A351 CF8 ASTM A351 CF8M
16 Nipple Carbon steel Carbon steel Carbon steel Carbon steel Carbon steel
17 Stem Nut ASTM A439 D2 ASTM A439 D2 ASTM A439 D2 ASTM A439 D2 ASTM A439 D2
18 Yoke Sleeve Nut Carbon steel Carbon steel Carbon steel Carbon steel Carbon steel
19 Hand Wheel Ductile Iron Ductile Iron Ductile Iron Ductile Iron Ductile Iron
20 Hand Wheel Nut Carbon steel Carbon steel Carbon steel Carbon steel Carbon steel
21 Set Screw ASTM A193 B7 ASTM A193 B7 ASTM A193 B7 ASTM A193 B7 ASTM A193 B7

Parts No. 5: original source used "b" instead of "5" — corrected. Gasket row: original source had "Sofl Iron" — corrected to "Soft Iron". Packing row: original source had "Giaphie" — corrected to "Graphite". Parts No. 9 and 21: original source had "ASTMA193" without a space — corrected to "ASTM A193" throughout. Parts No. 15 Bonnet (CF8M column): original source had "ASTM A351 Cf-8M" — corrected to "ASTM A351 CF8M".

Main Connection Dimensions — Class 300LB (mm)

Class 300 gate valve RF RTJ and BW connection dimensions drawing per ASME B16.10

Swipe horizontally to see all dimensions · The highlighted row is the DN50 / 2" size of this page

NPS DN L (RF) L (RTJ) L (BW) B D G f K Z-φd C RTJ-Y RTJ-P RTJ-E RTJ-F A
2 50 216 232 216 49 165 91.9 1.6 127 8-19.1 22.4 108 82.55 7.92 11.91 63
2 1/2 65 241 257 241 62 191 104.6 1.6 149.2 8-22.2 25.4 127 101.6 7.92 11.91 75
3 80 283 298 283 74 210 127 1.6 168.3 8-22.2 28.4 146 123.82 7.92 11.91 91
4 100 305 321 305 100 254 157.2 1.6 200.2 8-22.2 31.8 175 149.22 7.92 11.91 117
6 150 403 419 403 150 318 215.9 1.6 269.8 12-22.2 36.6 241 211.12 7.92 11.91 172
8 200 419 435 419 201 381 269.7 1.6 330.2 12-25.4 41.1 302 269.88 7.92 11.91 223
10 250 457 473 457 252 445 323.9 1.6 387.4 16-28.6 47.8 356 323.85 7.92 11.91 278
12 300 502 518 502 303 521 381 1.6 450.9 16-31.8 50.8 413 381 7.92 11.91 329
14 350 762 778 762 334 584 412.8 1.6 514.4 20-31.8 53.8 457 419.1 7.92 11.91 362
16 400 838 854 838 385 648 469.9 1.6 571.5 20-34.9 57.2 508 469.9 7.92 11.91 413
18 450 914 930 914 436 711 533.4 1.6 628.7 24-34.9 60.5 575 533.4 7.92 11.91 464
20 500 991 1010 991 487 775 584.2 1.6 685.8 24-34.9 63.5 635 584.2 9.52 13.49 516
24 600 1143 1165 1143 589 914 692.2 1.6 812.8 24-41.3 69.9 749 692.15 11.13 16.66 619
26 650 1245 1270 1245 633 972 749.3 1.6 876.3 28-44.5 79.2 809.8 749.3 12.7 19.84 670
28 700 1346 1372 1346 684 1035 800.1 1.6 939.8 28-44.5 85.9 860.6 800.1 12.7 19.84 721
30 750 1397 1422 1397 735 1092 857.3 1.6 997 28-47.6 91.9 917.4 857.25 12.7 19.84 772
32 800 1524 1553 1524 779 1149 914.4 1.6 1054.1 28-50.8 98.6 984.3 914.4 14.27 23.01 825
34 850 1626 1654 1626 830 1207 965.2 1.6 1104.9 28-50.8 101.6 1035.1 965.2 14.27 23.01 876
36 900 1727 1756 1727 874 1270 1022.4 1.6 1168.4 32-54 104.6 1092.2 1022.35 14.27 23.01 927

Dimensions in mm. L = face-to-face dimension (RF / RTJ) or end-to-end (BW) per ASME B16.10. The highlighted row is the DN50 / 2" size covered by this product page; the other sizes are listed for reference when the same valve is specified in other line sizes. RF and RTJ flange dimensions per ASME B16.5 for NPS ≤ 24; ASME B16.47 series A for NPS > 24. NPS 38 and 40 are not listed in the original Class 300 dimension series.

Frequently Asked Questions

What does stainless steel trim mean on a WCB gate valve?

On a WCB (carbon steel) gate valve, the body, bonnet and wedge are cast carbon steel, but the sealing surfaces — the seat ring and the wedge sealing face — are hardfaced with a stainless or hard alloy to resist erosion and wear. This is what the term stainless steel trim refers to. In the API 600 / API 6D trim numbering system, the common options are Trim 1 (13Cr seat and 13Cr wedge), Trim 5 (Stellite on both seat and wedge), and Trim 8 (13Cr wedge with Stellite seat). This valve is supplied with a stainless steel trim as standard, and the specific trim is confirmed at the time of order.

What is the difference between DN50 and 2 inch?

DN50 and 2 inch refer to the same nominal valve size. DN50 is the metric DN (Diamètre Nominal) designation in the DIN / ISO system, and 2 inch is the ASME NPS (Nominal Pipe Size) designation. For a 2 inch valve, the two are equivalent: NPS 2 = DN50, with an outside diameter of the connected pipe of approximately 60.3 mm. Both designations are used interchangeably in the valve industry, and this page uses both so that the same product can be found under either search term.

Is PN50 the same as Class 300?

PN50 and Class 300 are two different pressure rating systems and are not the same. PN50 is a nominal pressure of 50 bar in the DIN / EN system, while Class 300 is a class number that references the pressure-temperature curve in ASME B16.34. At ambient temperature, Class 300 corresponds to a pressure in the range of 50 bar for carbon steel, which is close to PN50, but the two are not identical and the pressure-temperature curves differ. For a valve that will be installed on a line that references one system, the valve should be specified in that same system — do not assume that a PN50 valve is interchangeable with a Class 300 valve without checking the pressure-temperature rating at the operating temperature.

Is NACE MR0175 available on this DN50 Class 300 WCB gate valve?

Yes, NACE MR0175 / ISO 15156 compliance is available on request. The H2S partial pressure, operating temperature, CO2 content and chloride concentration from your line conditions are needed to confirm the correct material and hardness specification before production. For sour service at Class 300, RTJ ends are frequently specified together with NACE compliance.
